JPY20-2 Fluorescent Ceiling Light

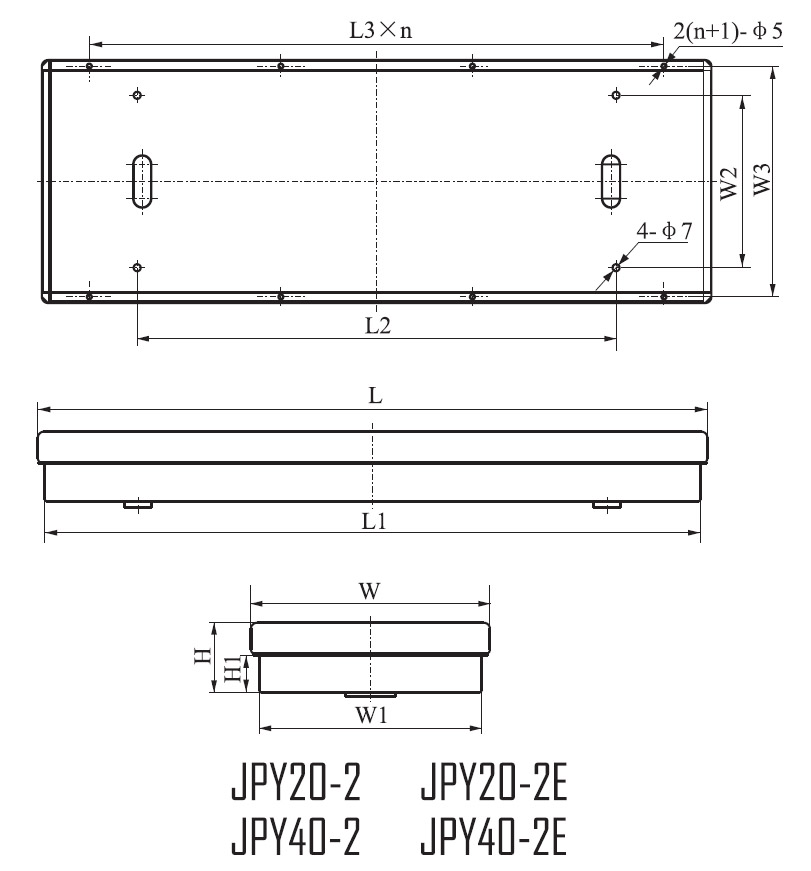

JPY Series Fluorescent Ceiling Light
Type
|
L
|
L1
|
L2
|
L3 x n
|
W
|
W1
|
W2
|
W3
|
H
|
H1
|
JPY20-2
|
664
|
647
|
475
|
190X3
|
241
|
220
|
171
|
229
|
69
|
37
|
JPY20-2E
|
664
|
647
|
475
|
190X3
|
241
|
220
|
171
|
229
|
69
|
37
|
JPY40-2
|
1274
|
1250
|
1085
|
280X4
|
258
|
222
|
171
|
232
|
65
|
34
|
JPY40-2E
|
1274
|
1250
|
1085
|
280X4
|
258
|
222
|
171
|
232
|
65
|
34
|
The Scope of application:
Applied to dry cabin, such as the residence, rest room, dining room, cab, operator of the sailors and passengers.
Product Feature:
1. The installation way of the light is recessed type, compact structure and delicacy appearance.
2. The lampshade is made of PC, non-discolor, fine toughness and soft light.
3. Equipped compensating capacitance inside the lamp, with perfect turn on performance.
4. The lamp equipped with B15d lamp holder, used for 24V/15W emergency bulb, the edge of lampshade marked with , please clarify that the emergency device is needed when order.
Specification:
Type
|
Power
|
Voltage
|
Power factor
|
Lamp holder
|
Protection Class
|
Weight
|
Note
|
JPY20-2
|
2X20W
|
110V/60HZ
220V/50HZ
220V/60HZ
|
>0.85
|
G13
|
IP22
|
5.2kg
|
-
|
JPY20-2E
|
3.7kg
|
With Emergency
|
|||||
JPY40-2
|
2X40W
|
11.5kg
|
With emergency and cover
|
||||
JPY40-2E
|
11.5kg
|
-
|
